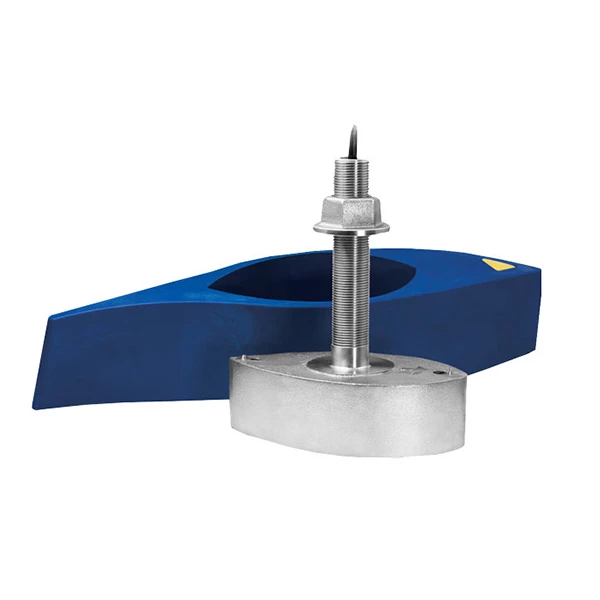

SIMRAD Transducers XSonic SS260 Thru-Hull Dual Frequency Transducer

Original price was: $531.00.Current price is: $94.99.

SKU: 18259168 Categories: Electronics & navigation, Fishfinders, Sonar, Transducers Tag: SIMRAD

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

SS260 is a great transducer upgrade for your 600W or 1,000W fishfinder for fast, sportfishing vessels that can support a thru-hull transducer with a fairing.

Powerful but sensitive! The SS260 will enhance fish detection on virtually all of today’s fishfinders. The narrow, 6° beam 200kHz ceramic will give you excellent resolution and crisp image detail needed for bottom fishing.

The SS260’s low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element 50kHz array has a wider 19° beam for deeper bluewater fishing. The outcome at both frequencies is excellent resolution and crisp image detail where it’s needed most.

Streamlined performance: Get maximum results, on any hull material, when installed with a custom-fitting High-Performance Fairing. At speeds over 30 knots, screens continue to display clear images and solid bottom tracking.

The xSonic SS260 is a stainless steel, 1kW (RMS), thru-hull, 50/200 kHz transducer, providing bottom detection down to 3,000′. Excellent for deep water bottom and structure fishing, the SS260 provides extremely accurate echosounding data, even at speeds of over 30 knots.

Specifications

Style: Thru-hull with fairing
Cable Length: 30′
Monitors: Depth and temperature
Material: Stainless steel
Connector: 9-pin xSonic
Transmit Power: 1,000W (RMS)
Frequency: 50/200kHz
Max. Depth: 3,000′
Beamwidth: 19°/6°

Beam	19, Degrees, at, 50, kHz
Frequency	50/200, kHz
Material	Stainless, Steel
Maximum Depth	3000, Feet, at, 50, kHz
Mount Type	Fairing, Block
Sonar	50/200, kHz, Broadband
Transmit Power	1, kW
Type	Fairing, Block
