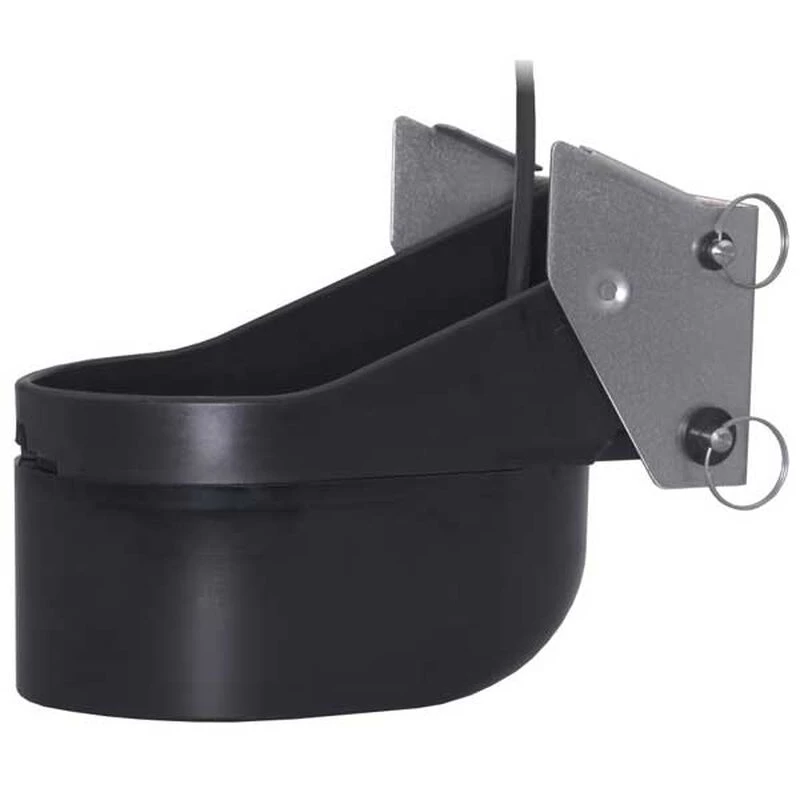

RAYMARINE Transducers TM265LH Transom Mount CHIRP Transducer

The TM265LH is a transom mounted CHIRP depth and water temperature sensor.

The TM265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42kHz and 65kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130kHz and 210kHz and has a narrow, 6° beam that is adjustable by several degrees.

The TM265LH is designed for both commercial and recreational inshore and offshore fishing. The B265LM is suitable for installation on the transom of outboard or stern-drive boats up to 25′ in length. It is also a great choice for trailered, sport fishing vessels where a thru-hull transducer cannot be installed.

We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, CHIRP Broadband Transducer Technology.

Key Features

• One broadband transducer covers up to 117 kHz of bandwidth – greater opportunities to detect fish in the water column
• Superior resolution – precise separation between baitfish and gamefish represented on the display with crisp images
• Enhanced bottom fishing – resolve targets close to the bottom or near structure/wrecks
• Amazing detail – recognize haloclines and thermoclines
• Improved signal to noise ratio – find fish and track bottom at high boat speeds

Specifications

• Style: Transom mount
• Cable Length: 33′
• Hull Transom Angle: 2°-20° degree
• Monitors: Depth and Temperature
• Material: Plastic
• Transmit Power: 1kW
• Frequency Range: Low: 42kHz to 65kHz; High: 130kHz to 210kHz
• Max. Depth: Low CHIRP: 3,000′; High CHIRP: 1,000
• Beamwidths: Low CHIRP: 25° to 16°; High CHIRP: 10° to 6°
