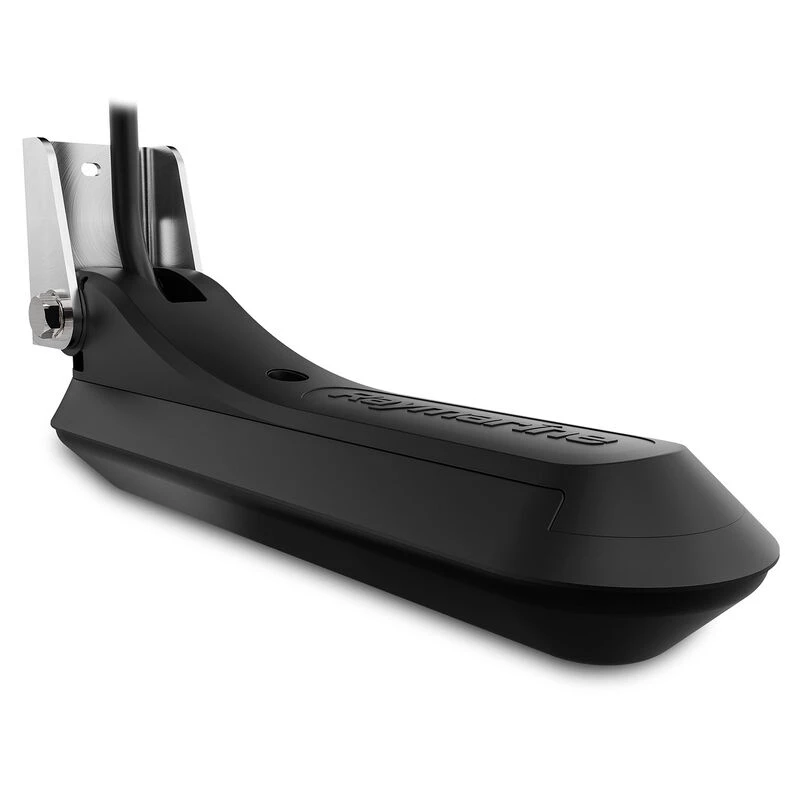

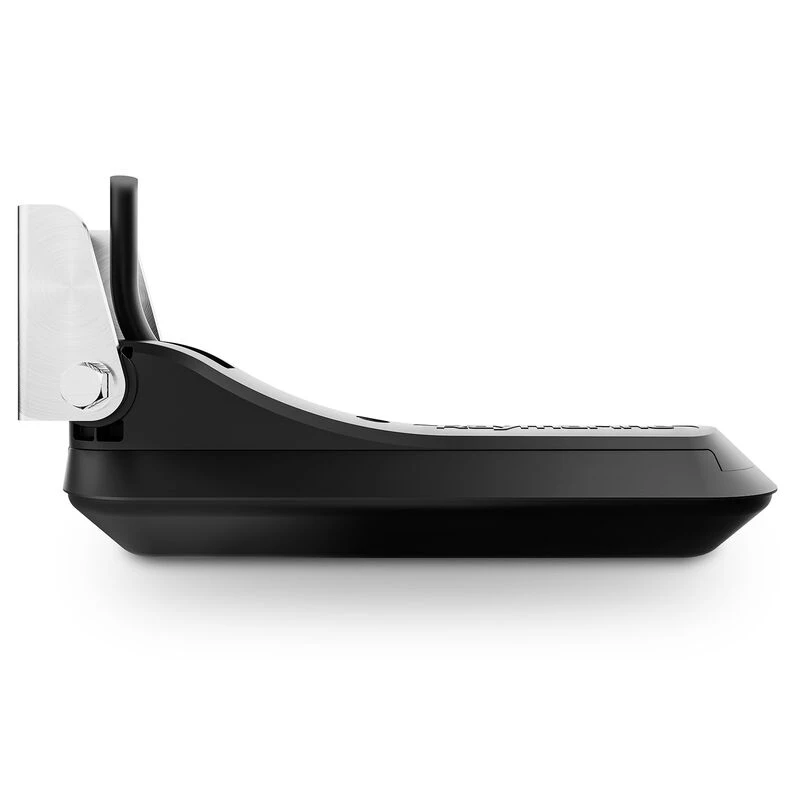

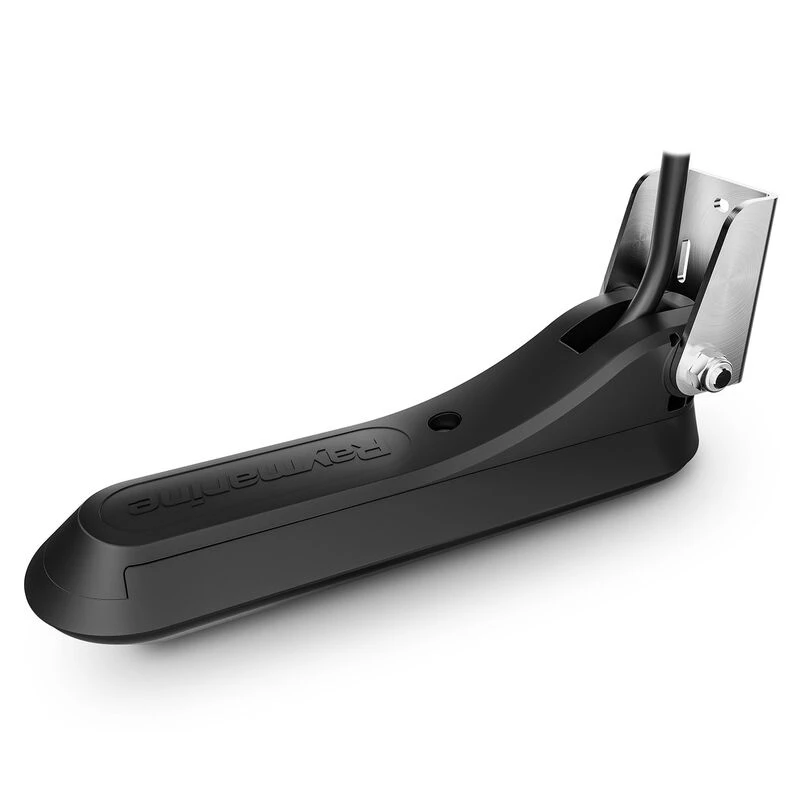

RAYMARINE Transducers RV-100 RealVision 3D All-In-One Transom Mount CHIRP Transducer

RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the lifelike clarity of RealVision 3D sonar.

The RV-100 is designed for easy transom mounting on outboard-powered boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

The RV-100 can also be removed from the transom bracket and attached to the stainless jack-plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step mounting bracket (sold separately).

Key Features

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar
• The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast response water temperature sensor for quick, accurate readings

Specifications

• Application: Axiom displays
• Style: Transom mount
• Cable Length: 26’4″(8m)
• Connector: 25-Pin Connector
• Monitors: Depth/Temperature
• Material: Plastic with stainless steel bracket
• Transmit Power: 100W (CHIRP); 600W traditional (RMS)
• Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
• Max. Depth: Traditional: 900′; 3D: 300′; CHIRP DownVision: 300′; CHIRP SideVision: 300′
• Beamwidths: 180°

What’s in the Box

• RV-100 All-In-One Transom Mount Transducer with 8-meter (26’4″) cable
• Transom bracket
• Mounting hardware
