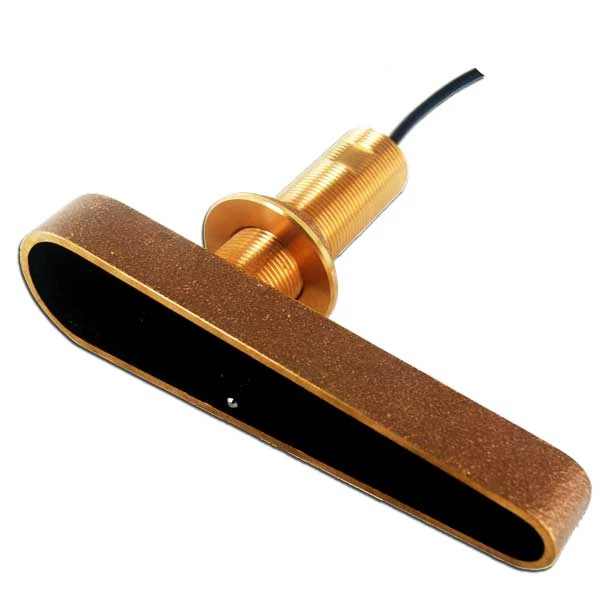

RAYMARINE Transducers CPT120 Thru-Hull CHIRP Tranducer With High Speed Fairing Block

When paired with either the CP100 network sonar module or any DownVision capable Raymarine display, the CPT120 brings CHIRP DownVision™ to life.

This through-hull CHIRP transducer delivers a photo like view of the world beneath your boat with two independent sonar elements. The first is a high frequency range that allows you to image bottom structure with amazing detail, while the second is a lower frequency range that is optimized for imaging fish using high contrast sonar imagery.

Unlike conventional transducers that transmit a single frequency with each pulse, the CPT120 is a CHIRP DownVision™ transducer that transmits across a wide spectrum of sonar frequencies with each pulse – the result is much higher resolution, photo-like, sonar images. Compatible with Raymarine CP100, a68 and a78.

Specifications

• Style: Thru-hull
• Material: Bronze
• Frequency: CHIRP 170-230 and 320-380kHz
• Transmit Power: 300W
• Max. Depth: 600′
• Beamwidth: 25°/60° wide (port / starboard) and thin (fore / aft) fan beam
• Cable Length: 33′ cable
• Hull Deadrise Angle: 0°-25°
