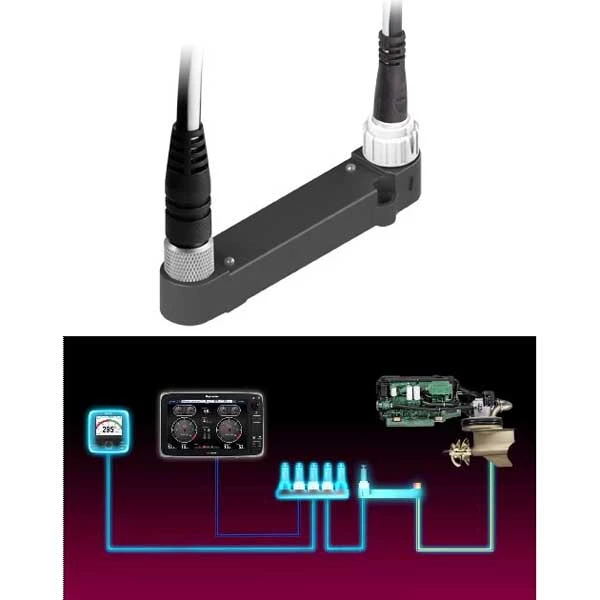

RAYMARINE Network Kits ECI-100 Universal Engine And Control Interface

The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems.

A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine’s latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine’s Evolution EV-2 Drive-by-Wire autopilot system.

A simple, single point of connection for engine data

• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways.
• View engine data displays alongside Raymarine’s industry leading radar, sonar and navigation technologies using a single touch screen display.
• Easy access to customizable displays to show engine performance data, fuel consumption, alarms and much more.
• View engine information displays on your smart phone or tablet with Raymarine mobile apps.
• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel.

Enjoy Autopilot Control from any network display

The ECI-100 brings Raymarine’s Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway.

Enjoy full autopilot control using a single touch screen display.

From aSeries to gS Series…

Engine information displays and autopilot control via the ECI-100 are available on our space saving aSeries displays, third generation cSeries and eSeries displays and our flagship big screen gS Series displays. Version 8 LightHouse software is required and will be available to download from our software updates section later this month.

Specifications:

• Dimensions (L x H x D): 109.2 x 21.35 x 30.2 mm (4.29 x 0.84 x 1.18 in)
• Nominal power supply: 12 V dc
• Operating voltage range: 10.8V to 31.2V dc
• Power consumption: 3.6W (maximum)
• Current: 10mA
• Fuse/breakers: 5A
• Load equivalency number: 1
• Operating temperature: -20º to +55ºC (+4ºF to 131ºF)
• Storage temperature: -30º to +70ºC (-22ºF to 158ºF)
• Relative humidity: 95%
• Waterproofing: IPX6
