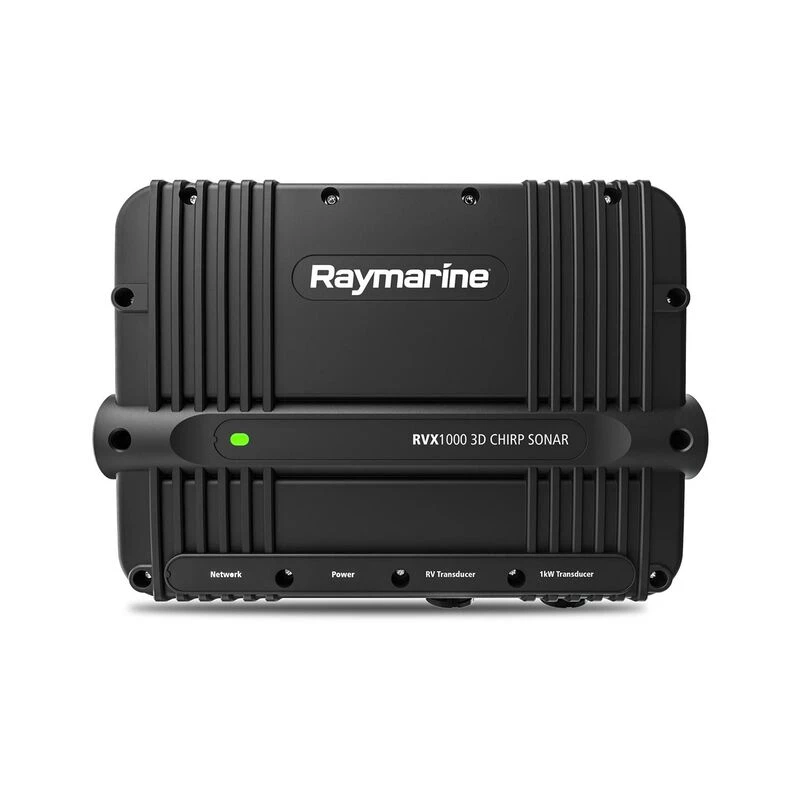

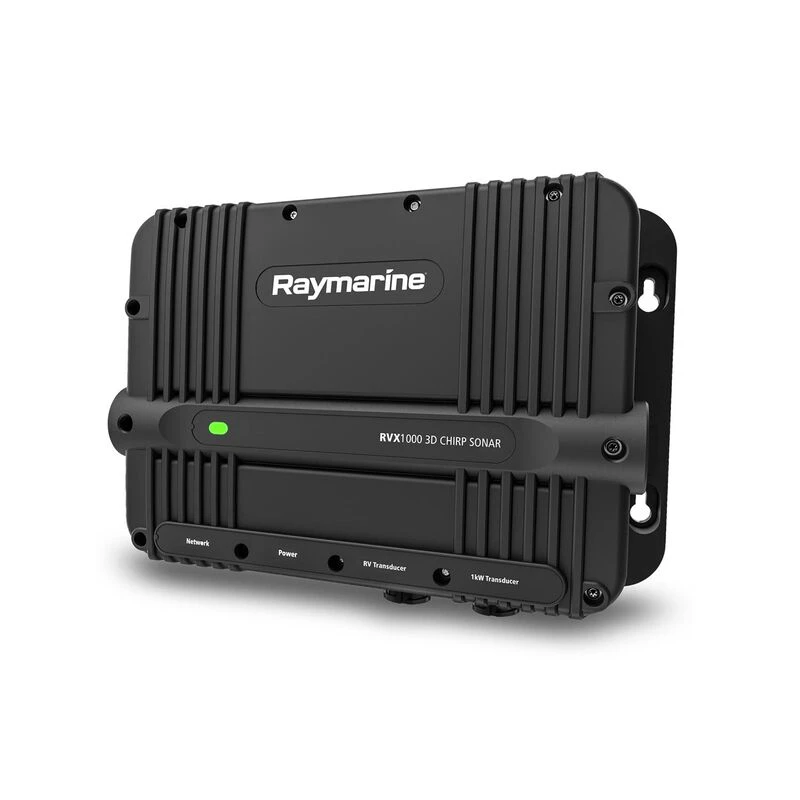

RAYMARINE Black Box Sonar RVX1000 3D CHIRP Sonar Module

The RVX1000 3D CHIRP Sonar Module offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Key Features:

• 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
• RealVision 3D with GPS Track
• Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
• Raymarine’s TrueZoom™ magnification technology
• RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
• Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
• Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay.

Transducer Options

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type: AXIOM RealVision	Reading(s)	Transmit Power	Material	Max. Depth	Model
RV-100 All-In-One Transom Mount Transducer (Primary)	3D CHIRP DownView SideView	N/A	Plastic	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219261
RV-200 Bronze All-In-One Thru-Hull Transducer	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219279
RV-212 Bronze Thru-Hull Transducer Pack	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219287
Individual RealVision 3D™ Thru-Hull Transducer, Port	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219295
Individual RealVision 3D™ Thru-Hull Transducer, Starboard	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219303
RV-220 Bronze Thru-Hull Transducer Pack	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219311
RealVision 3D™ 20° Thru-Hull Transducer, Port	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219329
Individual RealVision 3D™ Thru-Hull Transducer, Starboard	3D CHIRP DownView SideView	N/A	Bronze	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219337
RV-300 Plastic All-In-One Thru-Hull Transducer with 0° Deadrise	3D CHIRP DownView SideView	N/A	Plastic/Stainless Steel	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219345
Individual RealVision 3D™ Thru-Hull Transducer with 12° Deadrise, Port	3D CHIRP DownView SideView	N/A	Plastic/Stainless Steel	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219360
Individual RealVision 3D™ Thru-Hull Transducer with 12° Deadrise, Starboard	3D CHIRP DownView SideView	N/A	Plastic/Stainless Steel	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219378
Individual RealVision 3D™ Thru-Hull Transducer with 20° Deadrise, Port	3D CHIRP DownView SideView	N/A	Plastic/Stainless Steel	900′ CHIRP 300′ 3D 300′ DV 300′ SV	18219394

Transducer Type	Reading(s)	Material	Power	Max Depth	Model
B265 LH Thru-Hull Transducer	Depth/Temp	Bronze	1kW	1,500′	14395552
B75 LH Thru-Hull 0º Tilt Transducer (Pair)	Depth/Temp	Bronze	600W	1,000′	14395594
B75 LH Thru-Hull 12º Tilt Transducer (Pair)	Depth/Temp	Bronze	600W	10,000′	14395602
Airmar B175LH Low/High CHIRP 12° Tilt Bronze Thru-Hull Transducer	Depth/Temp	Bronze	1kW	10,000′	14395636
Airmar B175LH Low/High CHIRP 20° Tilt Bronze Thru-Hull Transducer Pair	Depth/Temp	Bronze	1kW	10,000′	14395644
TM265LH Transom Mount CHIRP Transducer	Depth/Temp	Plastic	1kW	10,000′	13217369
TM265 LM Transom Mount Transducer	Depth/Temp	Plastic	1kW	10,000′	14395586
M265LH In-Hull Transducer	Depth	Urethane	1kW	10,000′	14395560
M265LM In-Hull Transducer	Depth	Urethane	1kW	10,000′	14395578
R109LH-W Urethane Thru-Hull CHIRP Wide Beam 2kW Transducer	Depth	Urethane	2kW	6,000′	17834532
TM275LH-W Urethane Transom Mount CHIRP Wide Beam 1kW Transducer	Depth/Temp	Urethane	1kW	3,000′	17834482
B275LH-W BronzeThru-Hull CHIRP Wide Beam 1kW Transducer	Depth/Temp	Bronze	1kW	3,000′	17834524
R509LH-W Thru-Hull CHIRP Wide Beam 3kW Transducer	Depth/Temp	Urethane	3kW	10,000′	17834540
PM275LH-W Bronze In-Hull CHIRP Wide Beam 1kW Transducer	Depth	Urethane	1kW	3,000′	17834557
PM111LH-W Urethane In-Hull CHIRP Wide Beam 2kW	Depth	Urethane	2kW	6,000′	17834565
R111LH Urethane In-Hull CHIRP 2kW Transducer	Depth	Urethane	1kW	6,000′	17834573
R111LM Urethane In-Hull CHIRP 2kW Transducer	Depth	Urethane	2kW	6,000′	17834581
R599LH Urethane In-Hull CHIRP 3kW Transducer	Depth	Urethane	3kW	10,000′	17834599
R599LM Urethane In-Hull CHIRP 3kW Transducer	Depth	Urethane	3kW	10,000′	17834607
B75LM Bronze Thru-Hull CHIRP Transducer Pair 0 Degree	Depth/Temp	Bronze	600W	900′	17834664
B75MH Bronze Thru-Hull CHIRP Transducer Pair 0 Degree	Depth/Temp	Bronze	600W	900′	17834672
B75LM Bronze Thru-Hull CHIRP Transducer Pair 12 Degree	Depth/Temp	Bronze	600W	900′	17834680
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834763
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834771
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834789
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834797
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834805
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834813
R109LH Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	2kW	6,000′	17834821
R109LM Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	2kW	6,000′	17834839
R109LM Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	3kW	10,000′	17834847
