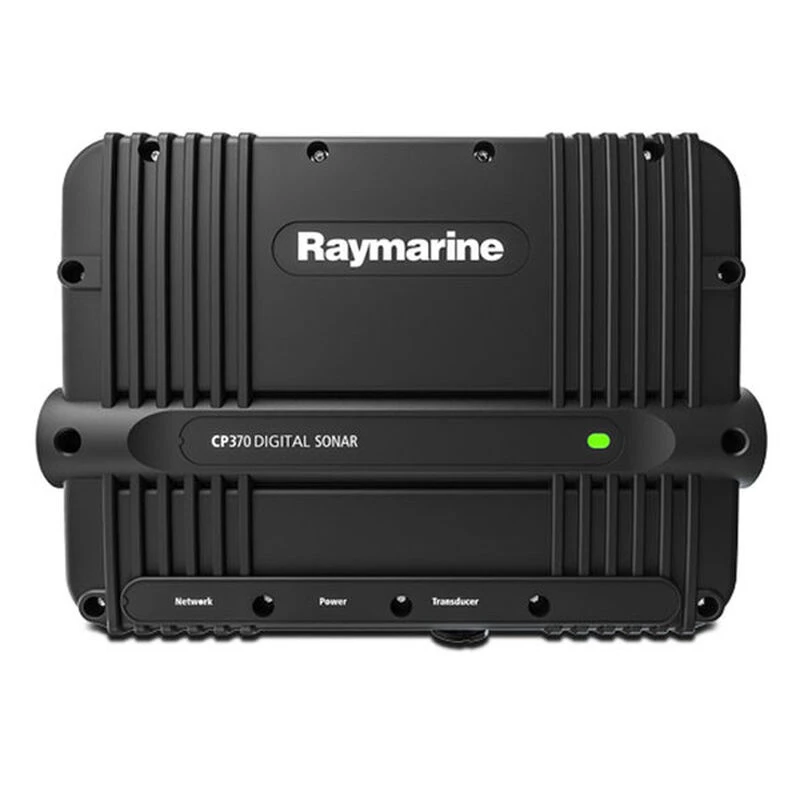

RAYMARINE Black Box Sonar CP370 Digital Sonar Module

RAYMARINE Black Box Sonar CP370 Digital Sonar Module - Image 2

RAYMARINE Black Box Sonar CP370 Digital Sonar Module

Original price was: $548.00.Current price is: $96.99.

SKU: 16220956 Categories: Black box sonar, Electronics & navigation, Fishfinders, Sonar Tag: RAYMARINE

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

Go deeper, with the next generation ClearPulse™ Sonar. The CP370 Digital Sonar Module is a high-performance, dual-frequency 50/200kHz sonar for coastal and offshore fishing, and the successor to Raymarine’s CP300 Sonar Module. CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next-generation ClearPulse™ digital sonar processing.

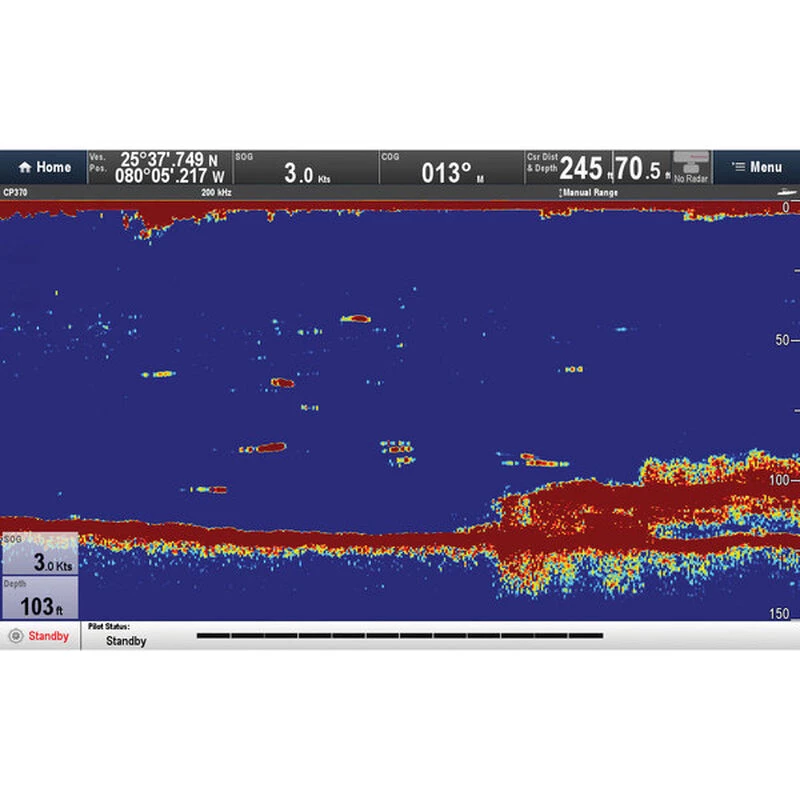

Sharper, clutter-free targets allow you to spend less time looking for fish and more time fishing. Smarter target intensity controls reveal bait and game fish with exceptional clarity. Enhanced digital filtering reveals fish targets through the entire water column. New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.

Specifications

Compatible Displays: aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen
Transmit Power: 600 or 1000W (depending on transducer)
Frequency: 50/200kHz
Maximum Depth: 5000′
Width: 11 13/16″
Height: 7 7/8
Depth: 3 5/16″
Transducer: Sold separately
Voltage: 12/24V DC
Power Consumption: 30.6W (Maximum)
Data Interface: RayNet (SeaTalk^hs)
Waterproof Rating: IPX6
Warranty: Three years (with product registration)

Transducer Options

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type	Reading(s)	Material	Transmit Power	Max. Depth	Model
M260 High-Performance In-Hull Transducer Kit	Depth	Plastic	1kW	5,000′	8582215
B60 Thru-Hull 20° Tilt Transducer	Depth/Temperature	Bronze	600W	1,500′	8658122
B60 Thru-Hull 12° Tilt Transducer	Depth/Temperature	Bronze	600W	1,500′	8658130
P319 Low-Profile Thru-Hull Transducer	Depth	Plastic	600W	1,500′	2703478
P79 Adjustable In-Hull Transducer	Depth	Plastic	600W	1,500′	1968965
B258 Thru-Hull Transducer with Fairing Block	Depth/Temperature	Bronze	1kW	5,000′	7845746
B164 Thru-hull Low-profile 20° Transducer	Depth/Temperature	Bronze	1kW	5,000′	9393786
B117 Thru-hull Low-profile Transducer	Depth/Temperature	Bronze	600W	1,200′	2703486
B164 Thru-hull Flush Transducer Tilted	Depth/Temperature	Bronze	1kW	1,500′	14395545
TM258 Urethane 1kw Transom Mount Transducer	Depth/Temperature	Urethane	1kW	2,200′	17834441
SS270W Stainless Steel Thru-Hull Wide Beam Transducer	Depth/Temperature	Stainless Steel/Plastic	1kW	2,000′	17834300

Dimensions	11.79", Width, x, 7.9", Height, x, 3.3", Depth
Frequency	50/200kHz
Maximum Depth	5000, Feet
Sonar	Digital, Sonar
Specific Transducer	Sold, Separately
Transmit Power	4kW
Warranty	Three, Years, (with, Product, Registration)
Waterproof	Waterproof
