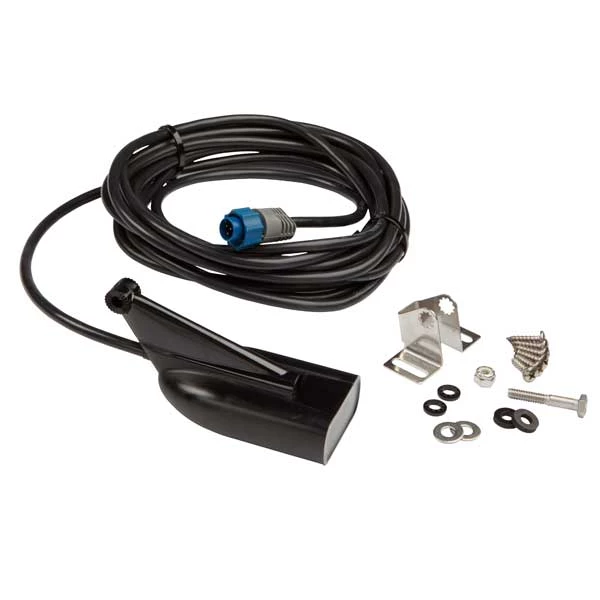

LOWRANCE Transducers Transom-Mount Hybrid Dual Imaging (HDI) Skimmer Transducer

All-in-one Broadband Sounder™ and DownScan Imaging capability.

Hybrid Dual Imaging (HDI) Skimmer Transducer uses Broadband Sounder (83/200kHz) plus DownScan Imaging (455/800kHz). The Sounder operates at depths up to 1,000′. The DSI signal features a maximum depth capability of 350′. This unit is compatible with Broadband Sounder sonar of HDS. It also has a removable mounting neck. Includes a stainless steel ratchet system for transom mount. It works with Lowrance Scupper Mount and Lowrance HDI Trolling Motor Adapter.

Key Features

• Works with Elite HDI, HDS Gen2 Touch and NSS evo2 models
• Ideal for inland and inshore coastal angling
• Transducer Frequency: 83/200kHz and 455/800kHz
• Hybrid Dual Imaging (HDI) combines Broadband Sounder and DownScan Imaging capability. Broadband Sounder marks fish arches and tracks lure action.
• DownScan Imaging provides picture-like detail of structure and bottom
• DownScan Imaging Overlay overlays DownScan Imaging onto Broadband Sounder display, separates and clearly exposes fish targets from surrounding structure with fully adjustable overlay transparency and color palettes
• TrackBack Into Sonar History scrolls back sonar history to review covered areas and pinpoint interesting spots
• Includes stainless steel ratchet system

Specifications

• Application: Works with  Elite HDI, HDS Gen2 Touch and NSS evo2
• Style: Transom mount
• Cable Length: 20′(6m)
• Monitors: Depth/Temperature
• Material: Plastic
• Transmit Power: 600W (RMS)
• Frequency: 83/200/455/800kHz
• Max. Depth: 1000’/300′ (DI)
• Beamwidths: 6.4°/12°
