LOWRANCE Transducers 12° Tilt Thru-Hull Hybrid Dual Imaging Transducer

Original price was: $388.88.Current price is: $93.99.

SKU: 14706618 Categories: Electronics & navigation, Fishfinders, Sonar, Transducers Tag: LOWRANCE

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

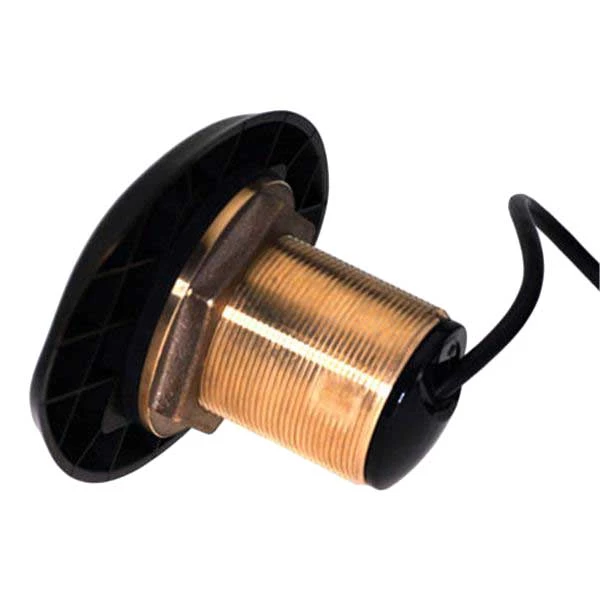

Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer. Works with HDS Gen2 Touch and Elite-7 HDI fishfinders. Provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. The transducer comes with a 33′ cable and blue 7-pin Lowrance connector which plugs directly into the Gen 2 Touch and the Elite-7 HDI. The transducer must be selected in the installation menu on the device.

Frequency: 50/200kHz, 455/800kHz DSI
Beamwidth: 50kHz 45°, 200kHz 11°, 455kHz (Fore to aft 2.8°, Port to starboard 56°), 800kHz (Fore to aft 1.6°, Port to starboard 32°)
Material: Bronze
Transmit Power: 600W (RMS)
Maximum Depth: 50kHz 3,000′, 200kHz 1,000′, 455kHz 300′, 800kHz 100′
Cable Length: 33′
Style: Thru-hull
Tilted Element Angle: 12°
Hole Diameter for Installation: 2.375″
Sensors: Depth/Temp

Beam	16×25, Degrees, Low-Frequency
Deadrise Angle	0, to, 12, Degree
Frequency	50/200+, 455/800kHz
Material	Bronze
Maximum Depth	2500, Feet
Sonar	Depth
Type	Thru-Hull
