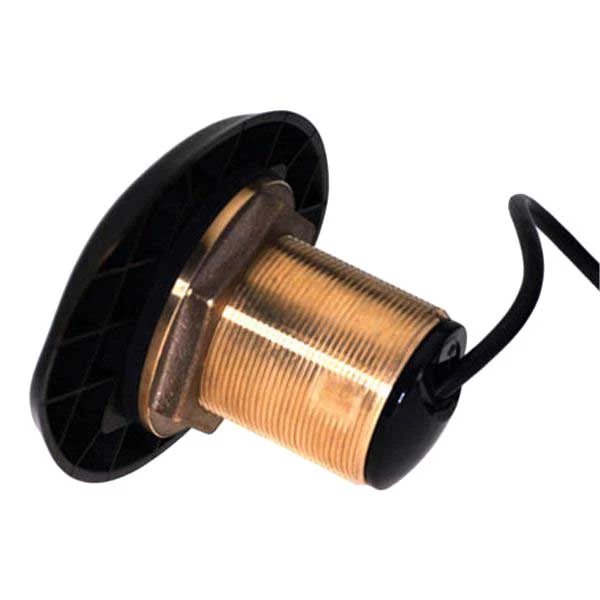

LOWRANCE Transducers 0° Tilt Thru-Hull Hybrid Dual Imaging Transducer

Original price was: $388.88.Current price is: $95.99.

SKU: 14706600 Categories: Electronics & navigation, Fishfinders, Sonar, Transducers Tag: LOWRANCE

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

0° non-tilted element thru-hull provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. Provides no hull deadrise compensation and fits boats with 0° to 7° deadrise. Compatible with HDS Gen2 Touch, HDS Gen2, Elite-7 HDI and Simrad NSS.

Transmit Power: 600W (RMS)
Beamwidth: 50kHz: 45°, 200kHz: 11°, 455kHz: Fore to aft 2.8°, Port to starboard 56°; 800kHz: Fore to aft 1.6°, Port to starboard 32°
Frequency: 200/50, 455/800kHz
Max. Depth: 50kHz 3,000′, 200kHz 1,000′, 455kHz 300′, 800kHz 100′
Cable: 33′ with blue 7-pin connector
Compatible Hull Materials: Fiberglass or wood
Hole Diameter for Installation: 2 3/8″

Beam	16×25, Degrees, Low-Frequency
Deadrise Angle	0, to, 6, Degree
Frequency	50/200+, 455/800kHz
Material	Bronze
Maximum Depth	2500, Feet
Sonar	Depth
Type	Thru-Hull
