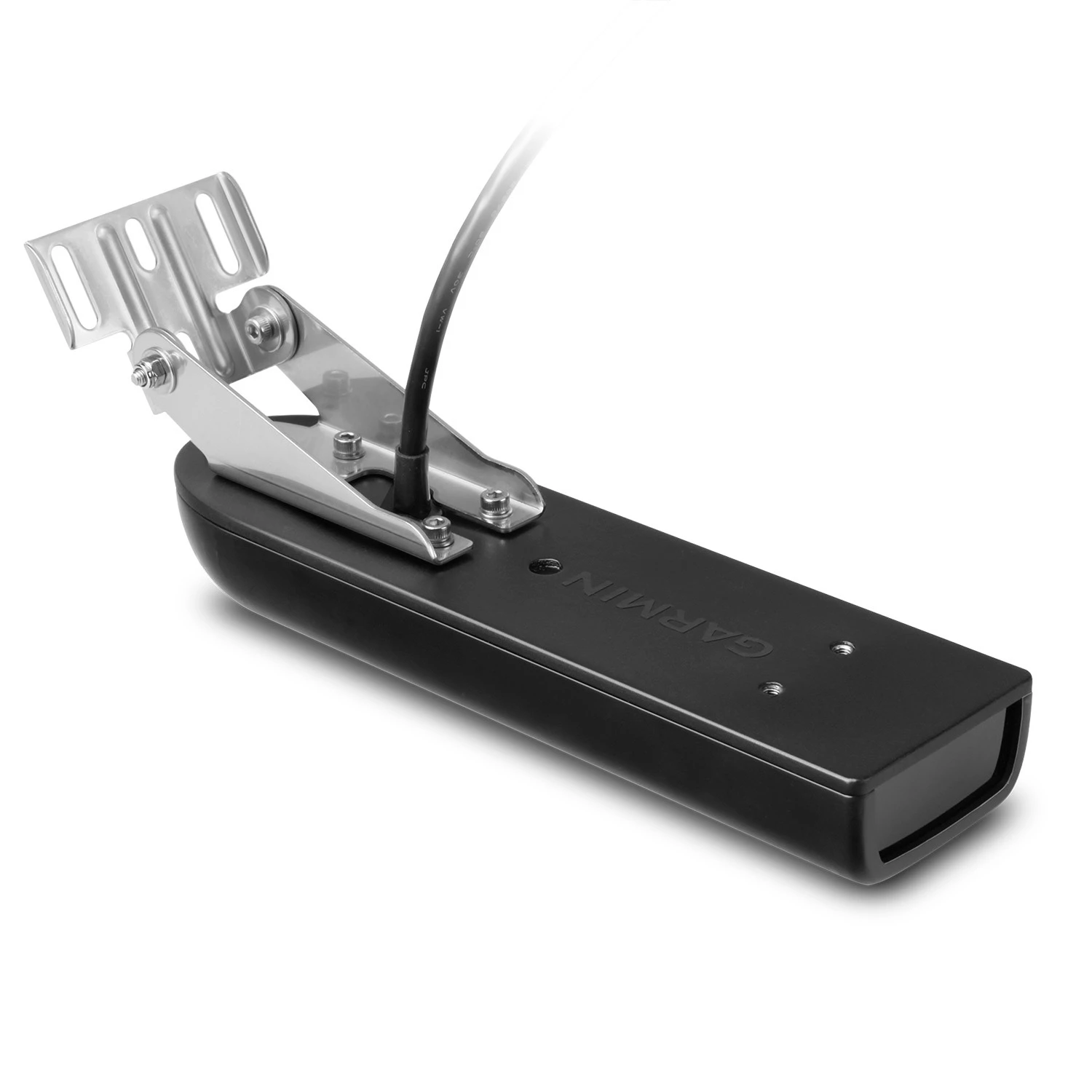

GARMIN Transducers GT23M-TM Transom Mount Traditional And CHIRP ClearVu Transducer

Original price was: $209.99.Current price is: $93.99.

SKU: 17685967 Categories: Electronics & navigation, Fishfinders, Sonar, Transducers Tag: GARMIN

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

GT23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat. The 8-pin transducer features mid-band CHIRP traditional sonar (80-160kHz) and has a power rating of 600W. The CHIRP ClearVü (260/455kHz) element has a power rating of 500W.

Specifications

Style: Transom mount
Cable Length: 30′(6m)
Connector: 8-pin
Supported Transom Angles: 0-70° transom
Monitors: Depth/Temperature
Material: Plastic
Transmit Power: CHIRP Traditional 600W; ClearVü 500W
Frequency Range: CHIRP Mid-band (80-160kHz); ClearVü CHIRP 260kHz (245-275kHz) and 455kHz (445-465kHz)
Max. Depth: Traditional: 1,800′; ClearVü: 1,000′
Beamwidths: Traditional (24°-13°); ClearVü (2.0° x 51° @ 260kHz) & (1.4° x 29° @ 455kHz)

What’s in the Box

GT23M-TM transducer
Transom mount
Mounting hardware
Documentation

Beam	Traditional, 24-13
Frequency	Traditional, 80-160, DownVu, and, SideVu:, 245-275, and, 445-465
Material	Plastic, Stainless, Steel
Maximum Depth	Traditional, 1800, Feet, DownVu, 1000, Feet
Sonar	CHIRP, Sonar, Depth, Temperature, Multiple, Beams, Variable, Frequencies
Transmit Power	600, Watts, Traditional
Type	Transom, Mount
