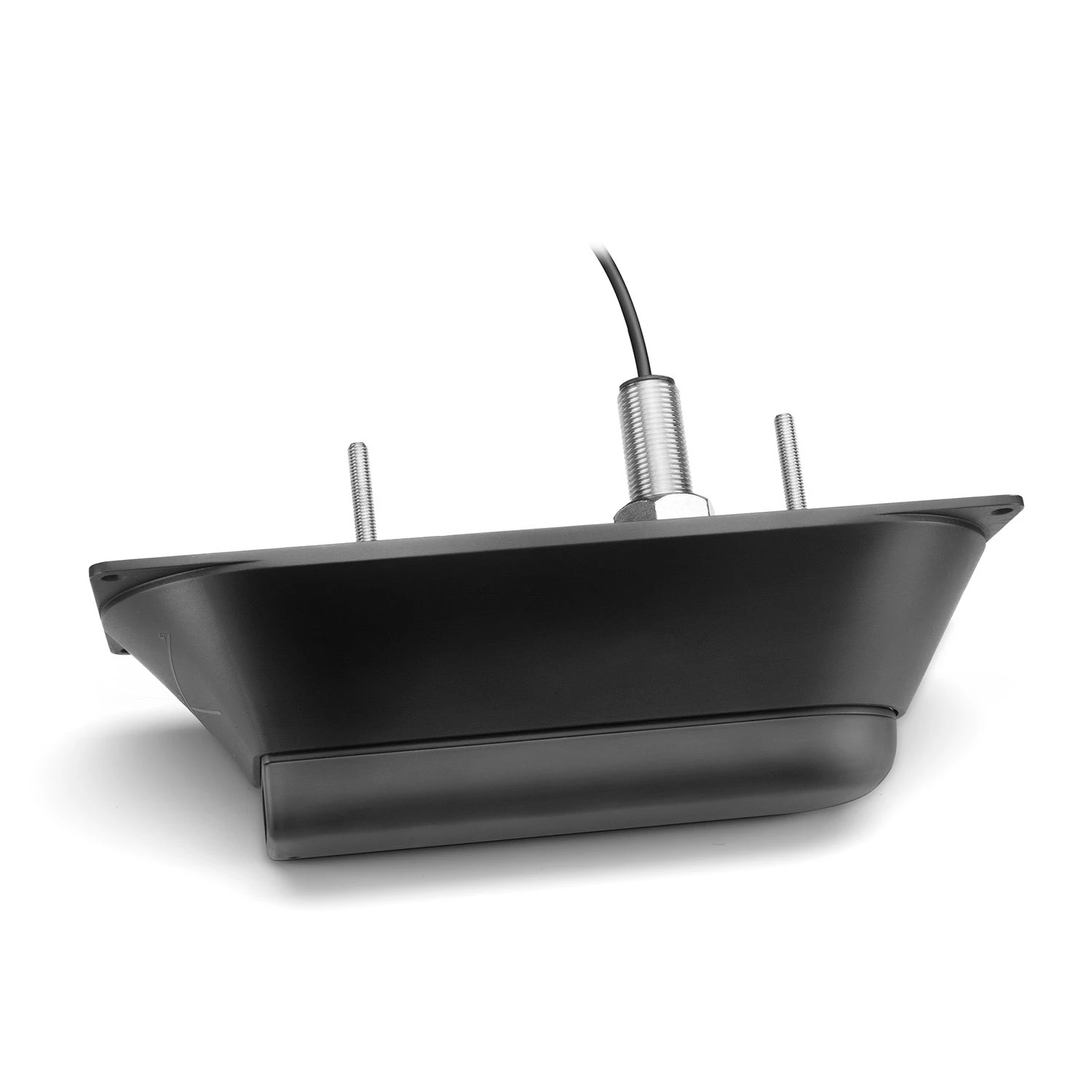

GARMIN Transducers GT23M-TH Thru-Hull Traditional And CHIRP ClearVu Transducer

Original price was: $579.99.Current price is: $92.99.

SKU: 17712696 Categories: Electronics & navigation, Fishfinders, Sonar, Transducers Tag: GARMIN

100% environmentally friendly material
100% High Quality Guarantee
Online assistance, always at your service.
7 days return and exchange

GT23M-TH transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

This thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat. The 8-pin transducer features mid-band CHIRP traditional sonar (80-160kHz) and has a power rating of 600W. The CHIRP ClearVü (260/455kHz) element has a power rating of 500W.

Specifications

Style: Thru-hull with fairing
Cable Length: 30′(6m)
Connector: 8-pin
Maximum Deadrise Angle: Up to 25° deadrise
Monitors: Depth/Temperature
Material: Plastic
Transmit Power: CHIRP Traditional 600W; ClearVü 500W
Frequency Range: CHIRP Mid-band (80-160kHz); ClearVü CHIRP 260kHz (245-275kHz) and 455kHz (445-465kHz)
Max. Depth: Traditional: 1,800′; ClearVü: 1,000′
Beamwidths: Traditional (24°-13°); ClearVü (2.0° x 51° @ 260kHz) & (1.4° x 29° @ 455kHz)

What’s in the Box

GT23M-TH transducer
Stainless steel stem
Fairing block
Isolation plate and bushings
Extension cable
Mounting hardware
Documentation

Beam	Traditional, 24-13
Frequency	???????Traditional, CHIRP, 80-160kHz, ?, DownVu, CHIRP, 245-275kHz, &, CHIRP, 445-465kHz
Material	Stainless, Steel
Maximum Depth	Traditional:, 1800'
Sonar	CHIRP, Sonar, Depth, Temperature, High-Detail, Resolution, Variable, Frequencies, Multiple, Beams
Transmit Power	600, Watts, Traditional/500, Watts, DownVu
Type	Thru-Hull
