GARMIN Black Box Sonar Panoptix LiveScope System, Thru-Hull Mount

Garmin Took Scanning Sonar and Made It Panoptix™

• See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
• See incredibly sharp real-time scanning sonar images up to 200′ around your boat
• Attitude Heading Reference System stabilizes sonar view on chartplotter screen, even in rough conditions
• Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter

Clearly, this is amazing sonar technology. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!

Panoptix LiveScope Forward™ Sonar

LiveScope Forward is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.

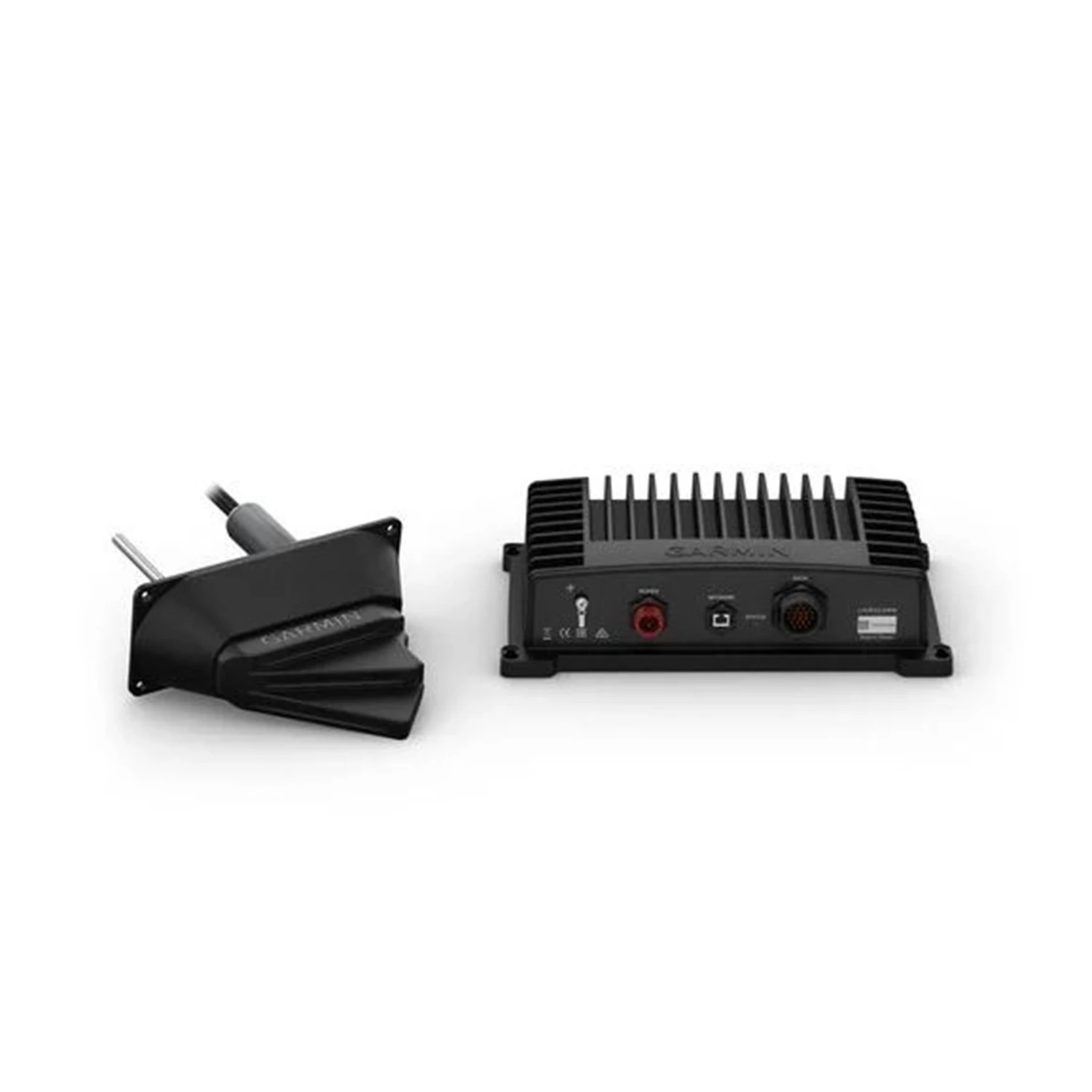

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 thru-hull transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter⊃1;. Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.

• Transmit power: 500 Watts
• Frequencies: 530 – 1,100 kHz
• Maximum Depth: Forward 200′
• Power Input: 10-32 Volts
• Power Usage: 21 W (typical), 58 W (max)
• Fuse: 7.5 A
• Beamwidth: 20° x 135°
• Transducer Cable Length: 20′
• Transducer Pins: 21

In the Box:

• LiveScope GLS 10 sonar black box
• Panoptix LVS32 transducer
• Thru-hull mount hardware
• Power cable
• 2 meter Garmin marine network cable, small connector
• Network adapter cable
• Mounting hardware
• Documentation
